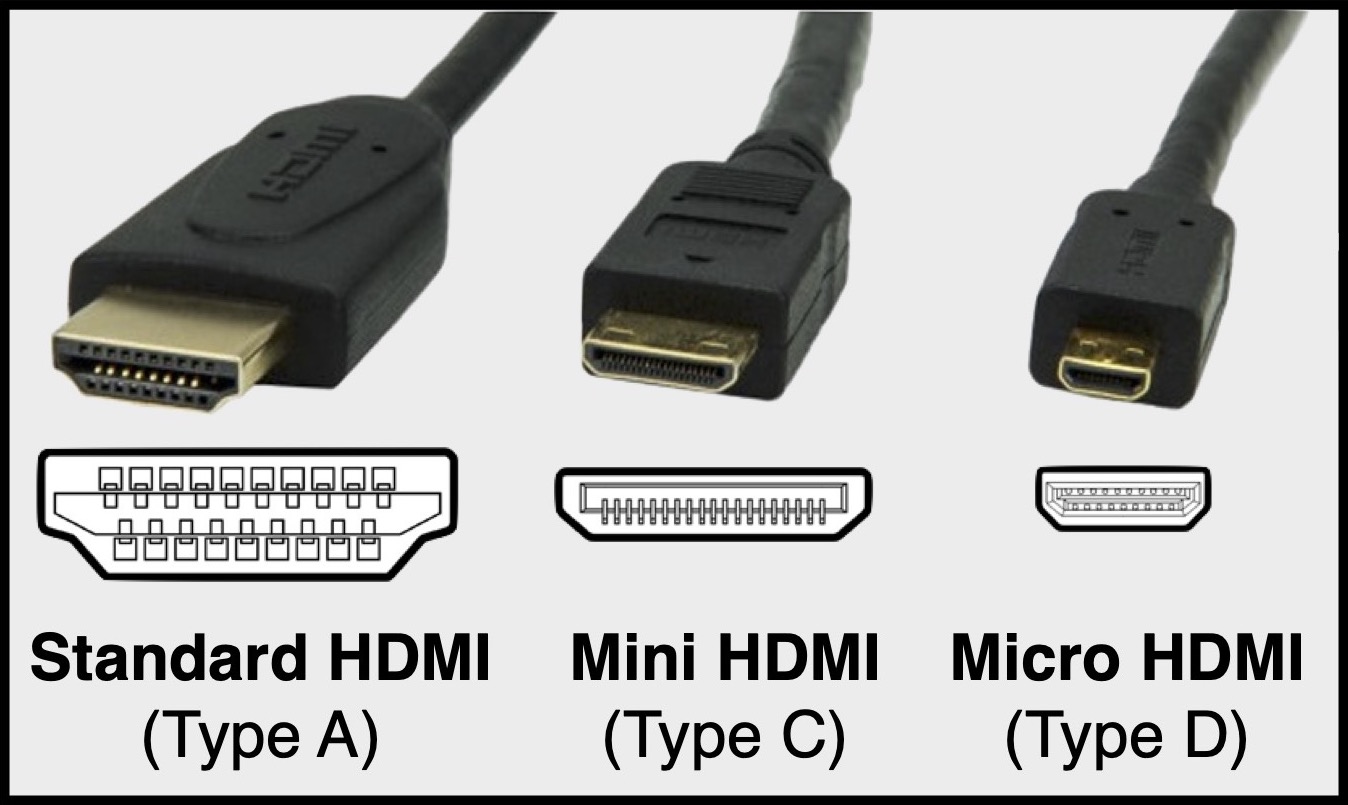

Mini HDMI vs Micro HDMI vs Standard HDMI Explained

Let's compare the differences between Mini HDMI vs Micro HDMI vs Standard HDMI.

PC Corn is supported by its readers. If you purchase products after clicking on links on our site, we may earn an affiliate commission.

HDMI BASICS

High-Definition Multimedia Interface (HDMI) is an audio/visual cable that allows two or more devices to transfer uncompressed video and audio data between each other. HDMI supports 1080p, 1440p, 4K, 5K and 8K resolution outputs. Before HDMI cables, the standard of connecting devices were by using analog or RCA cables. RCA cables are the yellow, white, and red cable that you might find in your storage. Today, HDMI cables connect to computers, DVD players, gaming consoles, and is arguably the most used cable in a home. We’ll be discussing the three mainstream HDMI cables, HDMI Type A (Standard HDMI), HDMI Type C (Mini HDMI), and HDMI Type D (Micro HDMI). Although these 3 HDMI cables have a different name, they are capable of outputting the same quality of video/audio output. When comparing the micro HDMI vs mini HDMI vs standard HDMI there is no worse cable, it depends on what your device uses.

HDMI’s have versions starting from 1.0 to 2.1 (as of Aug 2021), each increase in version model means more features and better resolution included with the HDMI interface. The first version (V1.0) has a max resolution output of 1080p, while the latest version (V2.1) can output 8k video. Despite the different version models, each type of HDMI version share the same connector and cable. HDMI cables are “future-proof” meaning they have permanent forwards compatibility. Devices with HDMI ports released in 2002, can still work with an HDMI cable from 2021. Although a device from 2002 would not have the technology to utilize the full benefits from an HDMI cable from 2021.

STANDARD HDMI (TYPE A)

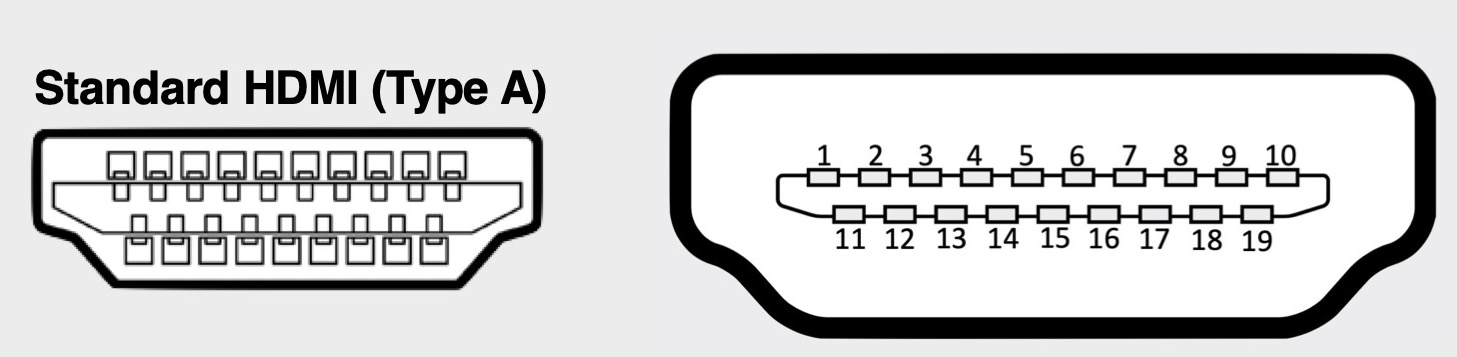

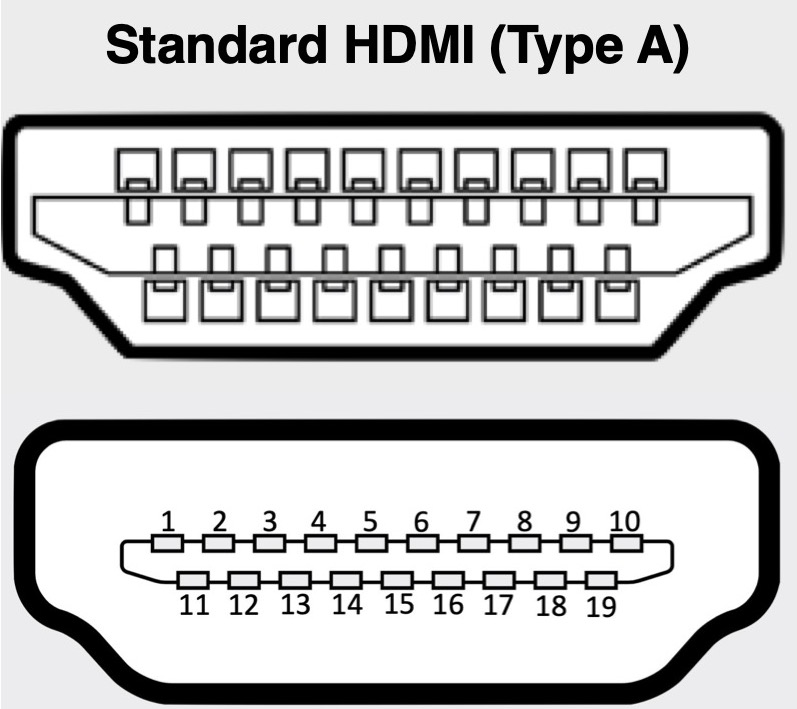

HDMI Type A is the most used HDMI cable and what you’re most likely to encounter when dealing with HDMI cables. When products use the term “HDMI”, this is what they are usually referring to. The first model of the HDMI Type A cable released in December of 2002. HDMI Type A has 19 pins along its connector, these pins are responsible for different available features. Some pins transmit video and audio data, while others synchronize connections or allow ethernet connection. Another benefit of these pins, is that it allows devices connected through HDMI to control and communicate with one another. This means, you may be able to turn on your console by using your television or something of that sort.

Devices are most likely to use HDMI Type A when there is enough space on the device. Therefore, large devices that possess a lot of space like HDTV’s, consoles, or DVD players will use HDMI Type A. The plug (male connector) has a 13.9mm (W) x 4.45mm (H) dimension and the receptacle (female connector) has a 14mm (W) x 4.55mm (H) dimension. The newest version of HDMI cables (V2.1; 2017) support up to 8k video output at an 120 hz refresh rate. When you buy a new display electronic like a television, it’s probable that an HDMI Type A comes with it.

Mini HDMI (Type C)

The Mini HDMI or HDMI Type C shares the same feature capabilities as the standard HDMI, but is 60% smaller than the standard HDMI’s connector. HDMI Type C released in 2006, four years after HDMI Type A. HDMI Type C’s plug (male connector) has a 10.42mm (W) x 2.42 (H) dimension. Despite being smaller, HDMI Type C still have the same 19 pins as HDMI Type A. Smaller devices use HDMI Type C to save on surface space, where a standard HDMI would be too big. HDMI Type C cables usually have a HDMI Type A plug/connector on the other end of the cable to connect to bigger screens. Portable devices like larger tablets, camcorders, thin laptops, or navigation systems use HDMI Type C. Besides portable devices, you’re unlikely to encounter this cable elsewhere.

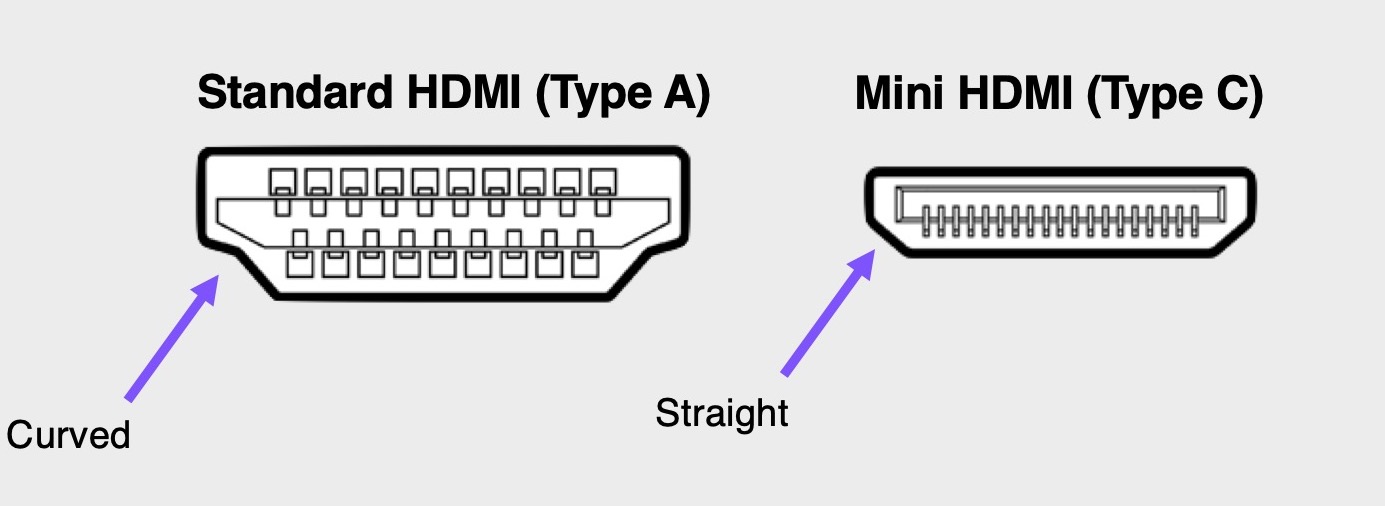

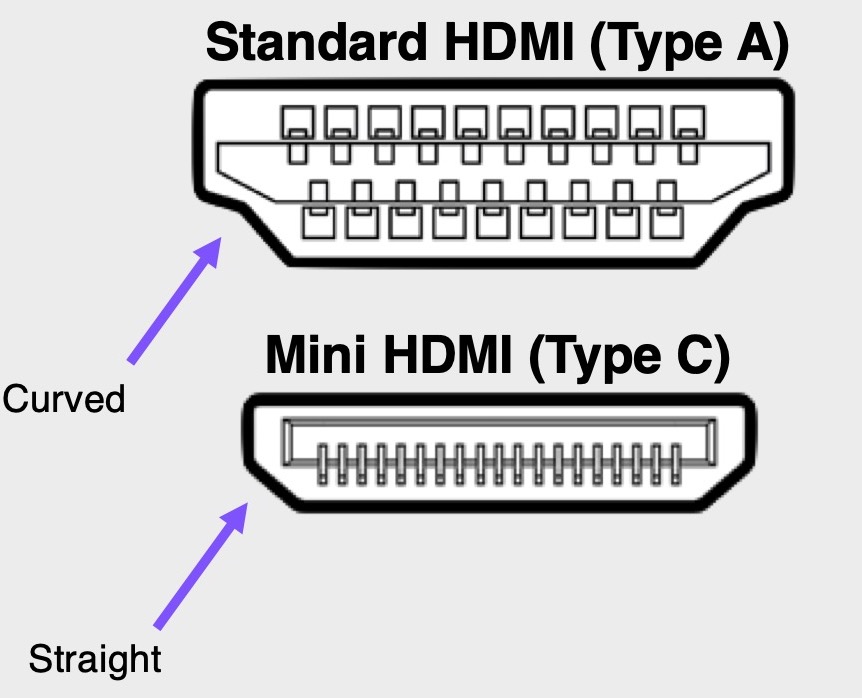

Don’t forget, just because this cable is smaller than the standard HDMI, doesn’t mean it’s lower in quality. A mini HDMI cable can output the same video/audio quality as a standard HDMI. Whether you choose one HDMI type over another is dependent upon the device being used. When differentiating between mini and standard HDMI connectors pay attention to the corners. The standard HDMI connector is going to be curved, while the mini HDMI is going to be straight.

Micro HDMI (Type D)

The Micro HDMI or HDMI Type D also shares the same features as the previously mentioned HDMI types, but is 80% smaller than the standard HDMI. HDMI Type D was released in 2009, three years after HDMI Type C. The dimensions of HDMI Type D are similar to the dimensions of micro-USB cables, which is how it earned its name “micro” HDMI. HDMI Type D Even smaller than the mini HDMI, the micro HDMI aims to allow HDMI connectivity for the smallest devices. Go Pro cameras, portable media players, and small smart phones all use HDMI Type D. It has dimensions of 5.82 mm (W) x 2.20 mm (H).

Micro HDMI’s are being used less due to easier alternative wireless options. Features such as chromecast or airplay are increasingly being chosen in substitute of micro HDMI. Micro HDMI are becoming rarer and rarer as time progresses. This is actually a good thing, manufacturers will know to include a micro HDMI when selling a product that requires one.

What about Type B and Type E?

You might be wondering why there’s no HDMI Type B when talking about the previously mentioned HDMI cable types. There is no product in existence that contains an HDMI Type B connector. Standard HDMI cables surpassed HDMI Type B before it had a chance to make it into products. Companies chose not to manufacture or integrate HDMI Type B because HDMI Type A was already superior. Plus, HDMI Type B took up more space than HDMI Type A, while still having less features.

Even though you’ll never see HDMI Type-B integrated into any product, it does exists. The model has 29 pins, instead of 19. The added 10 pins were for extra speed to allow for HDMI Type B to be faster than HDMI Type A. Despite the 10 extra pins, HDMI Type A delivered quicker speeds on its 19 pins. This made HDMI Type A a smaller and more efficient choice for manufacturers. This effectively ended any demand for HDMI Type B, very quickly. Therefore, you will not find any HDMI Type B connectors or cables out there, anywhere. The dimensions of its connector are 21.2 mm (W) x 4.45 (H). It has the exact same height as HDMI Type A, it’s only wider in size.

HDMI Type E was created for automotive use and can be found within vehicles. HDMI Type E has a locking click-on/click-off tab that mitigates vibrations and is also partially waterproof to prevent moisture and dirt. It’s most often used for automotive display panels. So, unless you’re replacing a part of your car or building one, you’ll never come across this cable type. There’s no need to worry about this one.

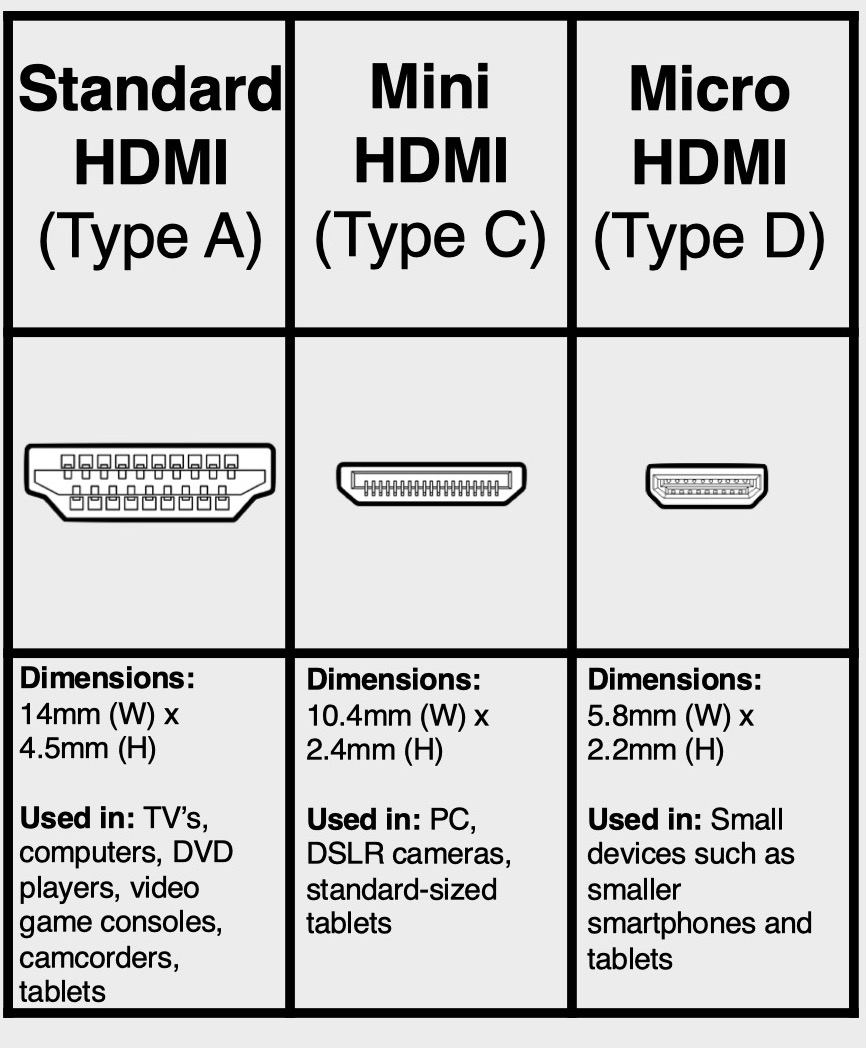

Conclusion: Mini HDMI vs Micro HDMI vs Standard HDMI

The biggest takeaway from the differences between the various HDMI cables are their size and which devices use them. Type A, C, and D have different use-cases for different electronics, but can output the same quality of audio and video resolution (depending on HDMI version) as one another. Despite HDMI type, if the version is the same, then the features will also be the same. Always check cable size required when purchasing a product that doesn’t come with an HDMI cable package. Impress your friends with a bit of knowledge and tell them about HDMI Type B or the automotive HDMI Type E

If you’re ever purchasing an HDMI cable, keep in mind that all HDMI cables are built equally. Don’t let companies overcharge you for differently branded cables that do the same thing. There is nothing companies can do to make an already manufactured HDMI cable, better. Amazon has pretty quality HDMI cables for very cheap, check them out.

Sceptre Monitor Review - 24" Inch Monitor (E248W-FPRK)

Sceptre Monitor Review - this 24" inch monitor is an inexpensive, yet strong performing monitor that delivers quality but sacrifices on a few features.

PC Corn is supported by its readers. If you purchase products after clicking on links on our site, we may earn an affiliate commission.

Sceptre 24″ IPS Monitor (E248W-FPRK) 1920 X 1080p Ultra Slim 75Hz

 7/10

RATING: 7/10 (ABOVE AVERAGE)

Sceptre Monitor Review: this 24″ Inch Monitor (E248W-FPRK) is an all-around above average monitor for cheap with some sacrifices. It has great out-of-the-box color accuracy and an attractive and slim build. This is a good choice for first-time monitor buyers on a tight budget.

Introduction

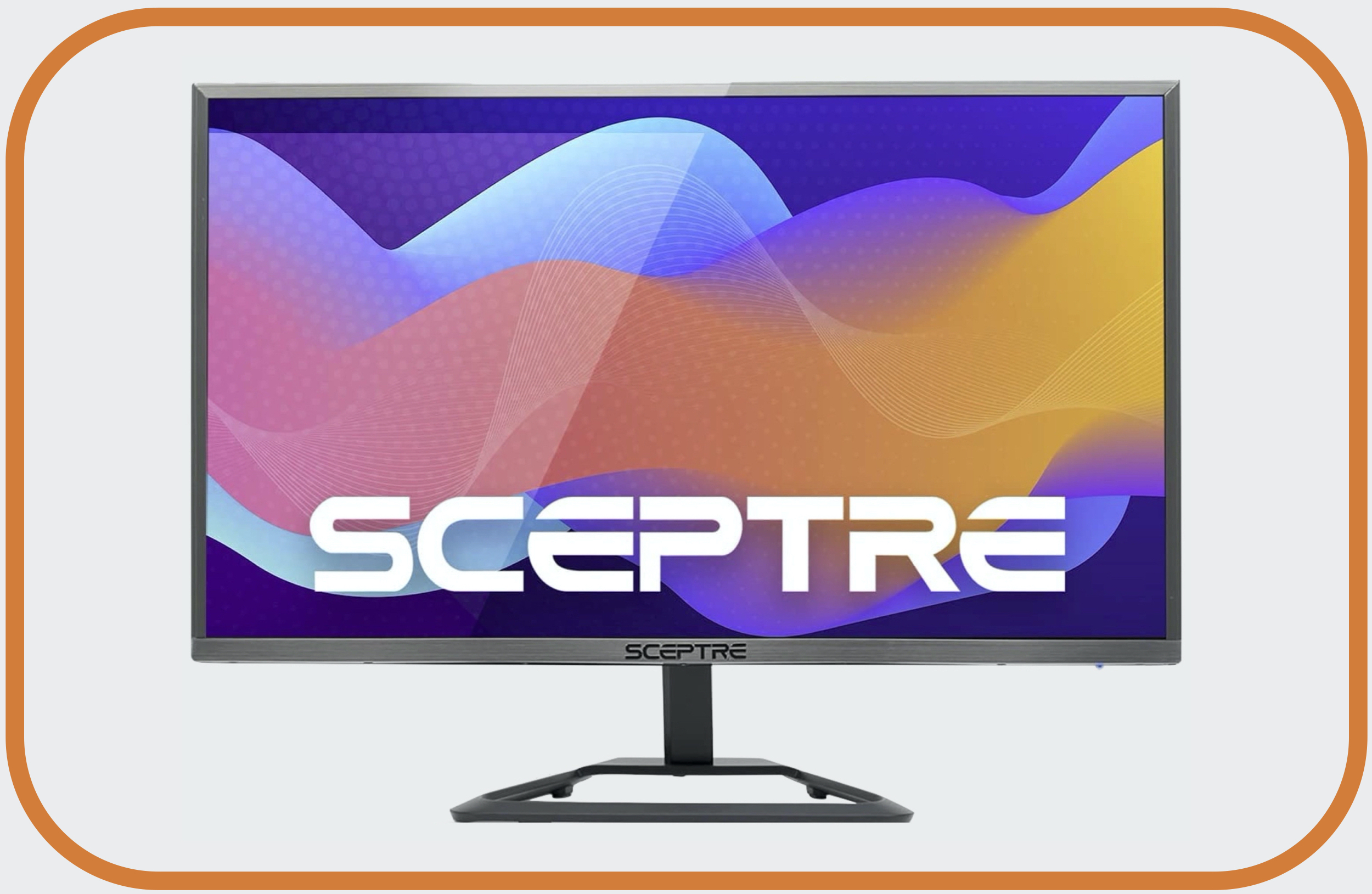

The Sceptre 24" inch monitor is a well performing, budget friendly, monitor with high definition (1920x1080p) output. It uses an In-Plane Switching (IPS) panel, which is preferential when searching for vibrant color displays with crisp images. The monitor is capable of a response time of 75hz with overdrive turned on and 60hz with it turned off. 60hz isn’t up to industry standard, but it still allows for 60+ frame rate gaming with smooth visuals. This monitors features would be most attractive to casual and/or budget gamers and console players looking to switch to PC.

For first time-buyers or those looking for a reliable monitor at a cheap price, this is a fantastic option. Because of their high color accuracy, IPS panels are on average are about $100 dollars more than other panel types. This monitor model is $160 dollars less than the average cost of an IPS panel, which is about $300 dollars. Right now, Amazon has the cheapest price amongst sellers.

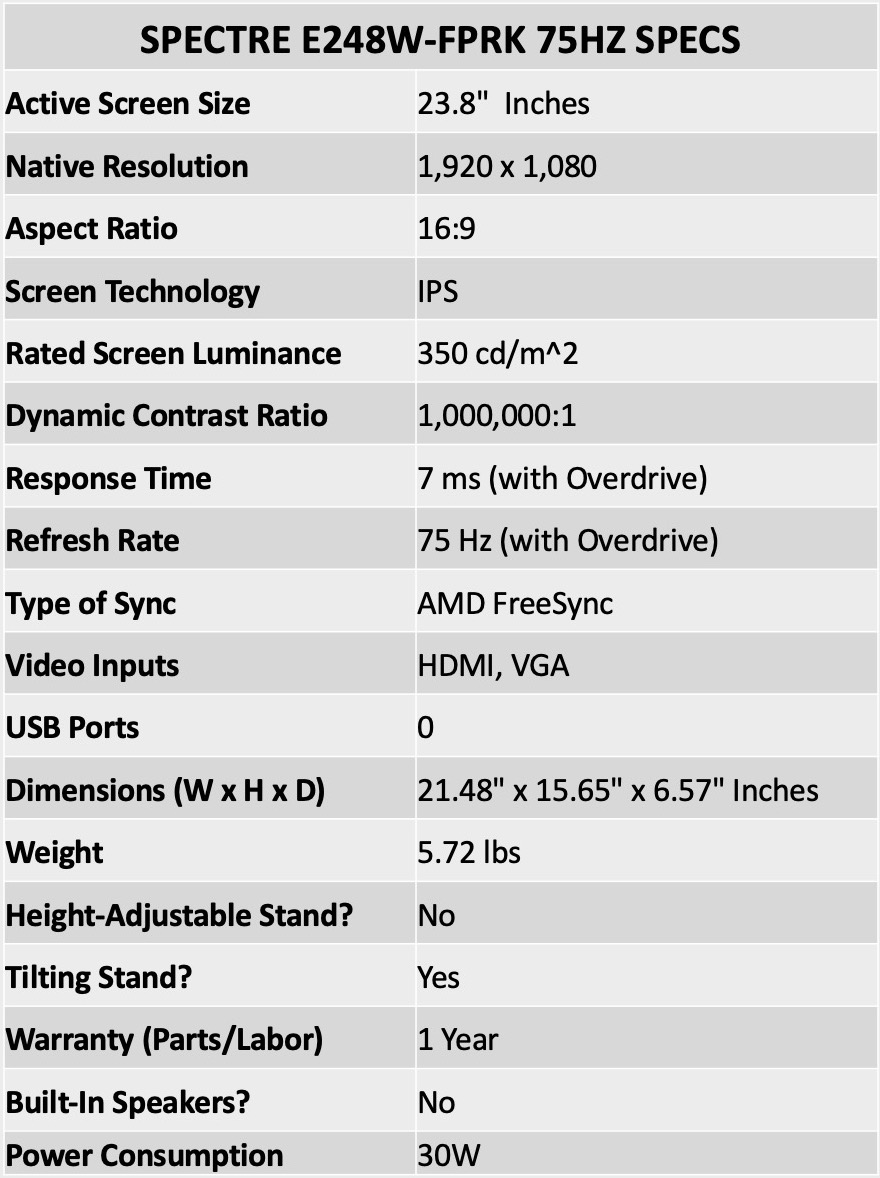

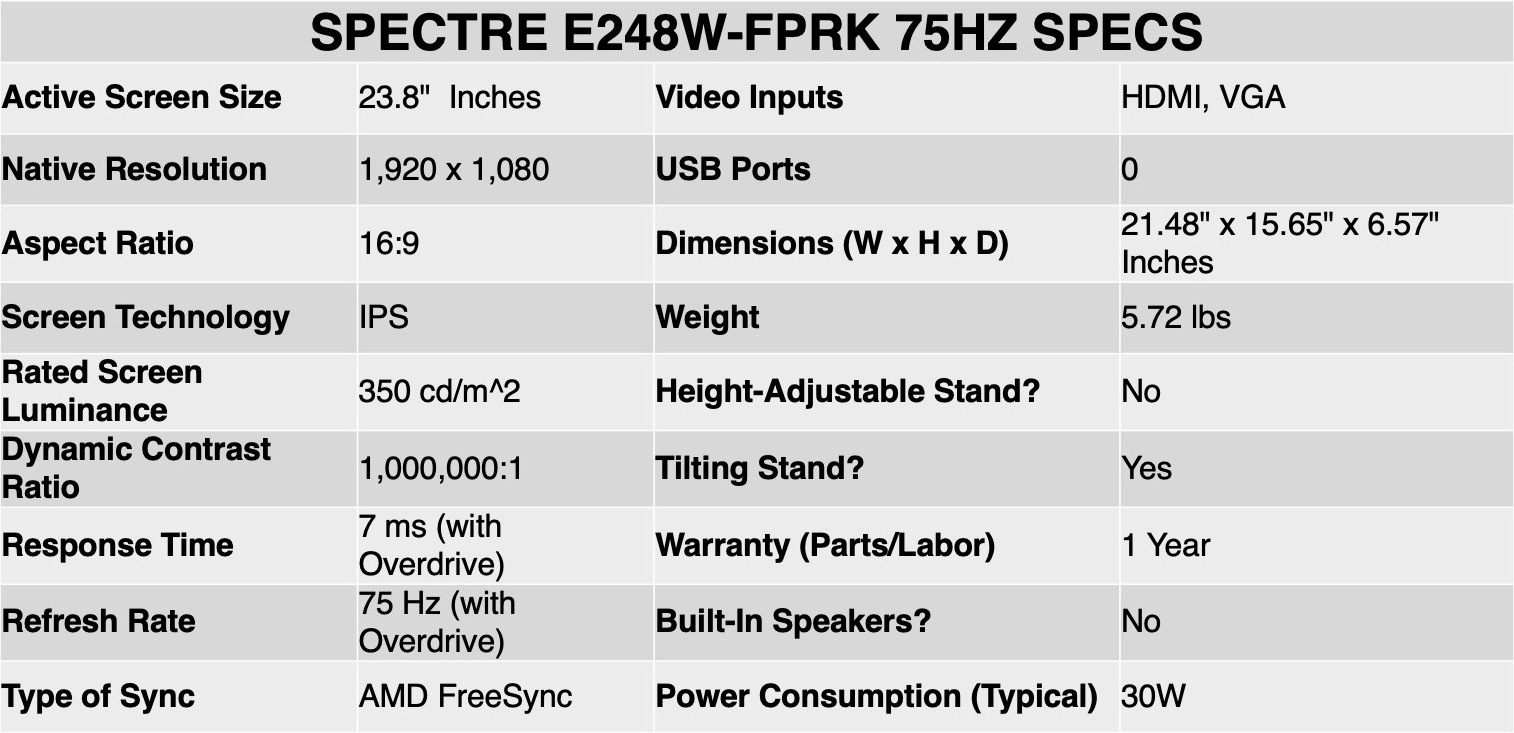

Features & Specifications

Response times are as low as 7 milliseconds, with overdrive mode, which optimizes response times and refresh rates. However, the monitor will have a 14-millisecond response time with overdrive turned off. Most gamers will report noticing ghosting and blurring issues starting at 12 to 16 milliseconds. Usually, this happens with monitors that have high refresh rates and high response times. The 14 millisecond pixel response time can easily keep up with the 60hz refresh rate and avoids blurring or ghosting.

This monitors 14-millisecond response time is suitable for real-time strategies, RPG’s, and other genres of casual gaming. A 14-millisecond response time would not be recommended for competitive or league FPS players. These players are looking for a 144+hz monitor with a 1 millisecond response time.

It supports auto dynamic contrast mode, which improves image quality and delivers inkier and deeper dark colors. It also features AMD FreeSync and comes with a one-year limited warranty for parts. The monitor has a maximum power consumption of 31.5 watts, but typically averages out to 30 watts of power consumption. There is 1 HDMI port that supports up to 1920 x 1080p @ 75hz and 1 VGA port. Unfortunately this monitor does not come with USB ports or DisplayPort inputs. The monitor comes with an AC Adapter, 1 HDMI cable, and two screws for both the stand and neck.

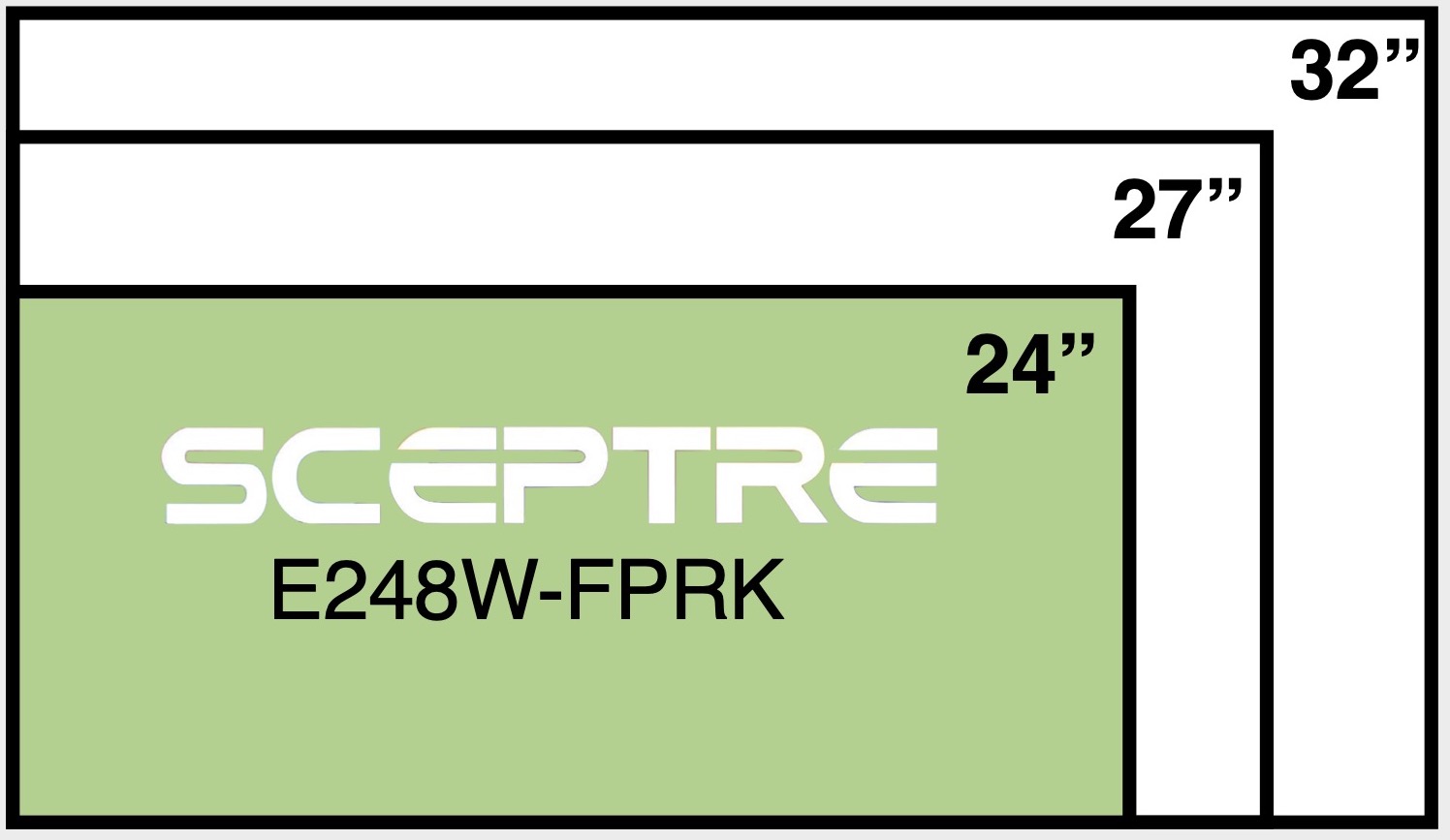

Display & Size

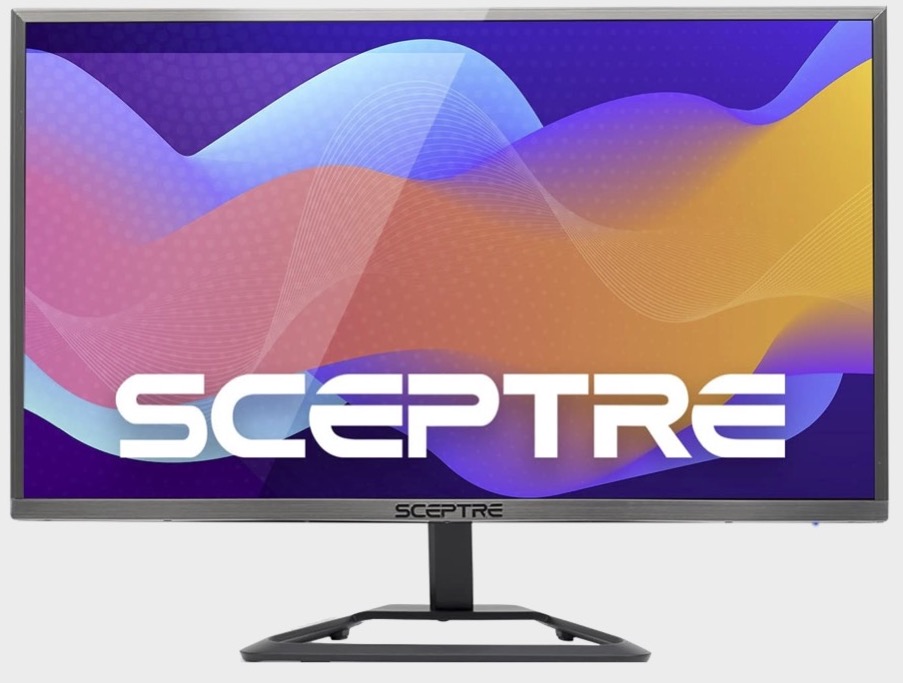

The 23.8” diagonal view has a 16:9 aspect ratio and a 1920 x 1080 high-definition output. Refresh rates can hit 75hz with overdrive turned on, and 60hz with it turned off. This monitor has great fresh out of the box color accuracy. Brightness levels cap at 350 cd/m2, which is typical for brighter monitors. Genuinely, this panel’s display looks fantastic for a budget monitor. While this isn’t the highest standard of picture quality, it is excellent for its value per dollar. Blue light shift mode is also available, which reduces the overall strain experienced by the eyes from blue lighting.

The bezel width is on the slimmer side at 10mm or 0.39 inches, which fits the monitors sleek design. For those looking for dual-monitor use, this panel will would be an okay option. It would be a great dual-monitor option, if its bezel width were a bit slimmer. It has a backlight life of 50,000+ hours or almost 6 years, and uses an edge-lit LED backlight. To add, this panel has great viewing angles at 178o degrees horizontal and vertical, which is as good as you’re going to get for an IPS panel at 24” inches and 16:9 ratio.

DisplayPort input, which is the most commonly used method of panel connectivity for gamers, is lacking with this monitor. Ten years ago, this would've been an issue, but today HDMI ports can provide very similar results that DisplayPort produces. Due to its tech improvements, HDMI will provide gamers with high definition outputs at a smooth refresh rates.

Audio

There are no built-in speakers within the monitor, which is by no means it’s largest downfall. This is an unfortunate sacrifice, but can be easily substituted with personal headphones or external speakers. There is one 3.5 mm audio input and one 3.5mm output on the back of the monitor. Meaning that you can plug in an external audio device to work around the lack of built-in speakers.

Design & Style

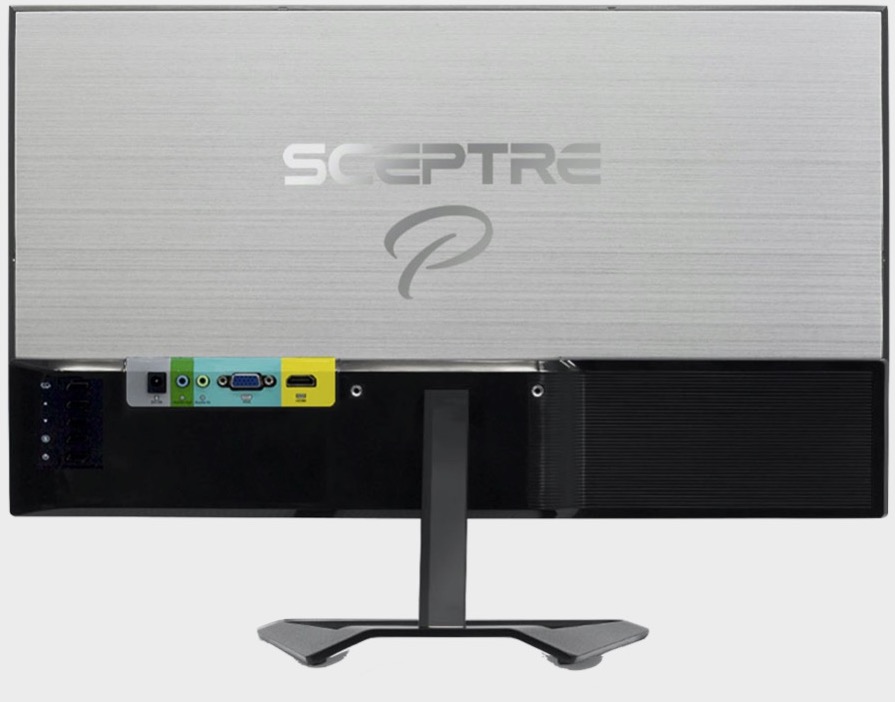

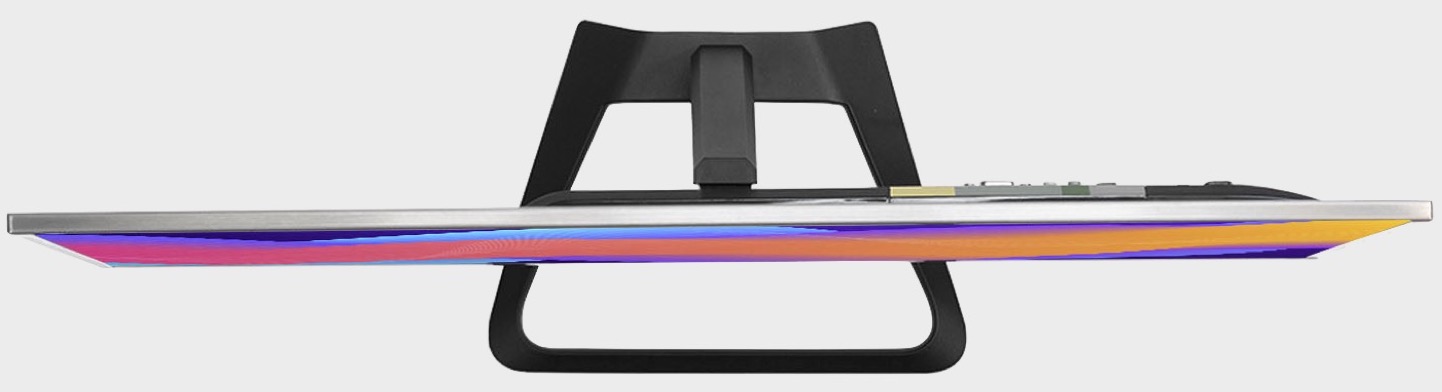

Hands down, the thinness of the monitor is its most attractive feature to the eye. Its metallic finish paired with the monitors 1.12” inch thinness makes it look more expensive than it is. The weight of the monitor and stand is 5.72 lbs, adding to the thin and light feel of the monitor. The backside of the monitor has a sleek silver finish with the sceptre logo, which feels nice to the touch. There are five buttons on the back right side of the monitor for menu and option setting. Next to it are 2 video ports, 2 audio ports and the power supply input.

The overall build of the monitor feels very sturdy, but is also prone to desk wiggle. The occasional tap against the desk will make the monitor wiggle a fair amount. While the stand remains stable against desk movements, the monitor doesn’t always. To add, the stand lacks height adjustment, but is still fairly flexible and can move 5 degrees forward and 15 degrees backward for optimal viewing. For those looking to avoid the monitor's wiggle or save space, it is VESA wall-mountable.

Verdict: A cheap, yet above average monitor

In conclusion, this Sceptre 24" Inch Monitor (E248W-FPRK) is an all-around above average monitor for cheap with some sacrifices. It has great out-of-the-box color accuracy and an attractive and slim build. This is a good choice for first-time monitor buyers on a tight budget.

Because this is a budget-monitor features such as DisplayPort input, USB ports and built-in speakers are missing. Personal headphones or external speakers are strongly recommended.

Click here to learn the difference between HDMI cable types.
